FreeCAD
FreeCAD — бесплатная САПР, программа для трехмерного геометрического моделирования. Предназначена для создания параметрических объемных объектов различной сложности.
Возможности
FreeCAD позволяет создавать параметрические 3D объекты реального мира. Программу можно применять для моделирования в таких областях, как архитектура, машиностроение, промышленный дизайн и других.
FreeCAD обладает огромным количеством возможностей. Входной порог относительно низкий, программой смогут пользоваться не только профессионалы, но и менее опытные пользователи, например, студенты и преподаватели. К тому же, в интернете доступно множество руководств и видео-уроков по FreeCAD.
Некоторые из основных возможностей FreeCAD:
FreeCAD: Архитектурное моделирование
Установка
Программа представлена в штатных репозиториях популярных дистрибутивов Linux (пакет freecad). Для установки FreeCAD из штатных репозиториев выполните одну из следующих команд, соответствующую вашему дистрибутиву Linux:
В штатных репозиториях не всегда находится самая свежая версия. Для тех, кто хочет получить самую новую версию, разработчики предлагают другие варианты установки FreeCAD в Linux.
Установка FreeCAD в Ubuntu, используя PPA-репозиторий
Для установки FreeCAD в Ubuntu Linux, используя PPA-репозиторий, выполните команды:
Установка/запуск FreeCAD, используя готовый AppImage-пакет
FreeCAD можно скачать в виде готового AppImage пакета, который не требует установки. Это файл вида FreeCAD-0.17.13541.9948ee4.glibc2.17-x86_64.AppImage
FreeCAD: Создание и моделирование робота
Разработка
Программа написана на: C++, Python.
В основе FreeCAD используется Open CASCADE Technology.
Установка
FreeCAD распространяется под лицензией LGPL, Вы можете загрузить, установить, распространять и использовать FreeCAD любым способом, вне зависимости от выполняемой с ним работы (коммерческой или некоммерческой). Вы не связаны никакими ограничениями, и все файлы, которые Вы произвели с его помощью, принадлежат только Вам. Единственное, что запрещает Вам лицензия, это утверждать, что Вы сами написали FreeCAD!
FreeCAD работает одинаково на Windows, Mac OS и Linux. Однако способ установки отличается в зависимости от Вашей платформы. На Windows или Mac сообщество FreeCAD обеспечивает прекомпилированные пакеты (установщики), готовые для загрузки, в то время как на Linux майнтайнерам дистрибутивов предоставляется исходный код, и уже они отвечают за составление пакетов для их дистрибутива. В результате Вы обычно можете установить FreeCAD из программного менеджера пакетов.
Официальная страница загрузки FreeCAD для Windows и Mac OS находится по адресу https://github.com/FreeCAD/FreeCAD/releases
Официальные выпуски FreeCAD, которые Вы можете найти на странице указанной выше и в менеджере пакетов Вашего дистрибутива, это стабильные версии. Тем не менее, FreeCAD разрабатывается быстро! Новые возможности и исправления ошибок добавляются почти каждый день. Поскольку порой требуется много времени до стабильного выпуска, Вас может заинтересовать последняя версия FreeCAD. Эти версии для разработчиков, или пре-релизы, загружаются время от времени на вышеупомянутую страницу загрузки, или, если Вы используется Ubuntu или Fedora, сообщество FreeCAD так же поддерживает ‘ежедневные сборки’ PPA (Personal Package Archives) и copr, которые регулярно обновляются самыми последними изменениями.
Если Вы установили FreeCAD на виртуальной машине, учтите плохую производительность (или даже в некоторых случаях неработоспособность) из-за ограничений поддержки OpenGL на большинстве виртуальных машин.
Содержание
Установка под Windows
Установка версии для разработчика
Установка в Linux
В большинстве современных дистрибутивов Linux (Ubuntu, Fedora, OpenSUSE, Debian, Mint, Elementary и т.д), FreeCAD может быть установлен нажатием кнопки, прямо из приложения управления программами дистрибутива (его вид может отличаться от картинки ниже, поскольку каждый дистрибутив использует свои инструменты).
Одна из главных радостей использования Linux это множество возможностей для настройки своих программ, так что не ограничивайте себя. В Ubuntu и их производных FreeCAD так же может быть установлен из PPA, поддерживаемых сообществом FreeCAD (он содержит и стабильную, и нестабильную версию). В Fedora, последние разрабатываемые версии FreeCAD могут быть установлены из copr, и поскольку это программы с исходными кодами, Вы так же можете запросто скомпилировать FreeCAD самостоятельно.
Установка в Mac OS
Установка FreeCAD на Mac OSX теперь так же легка, как и для других платформ. Однако, поскольку в сообществе меньше людей имеет Mac, доступные пакеты часто задерживаются на несколько версий относительно других платформ.
5. Если система запрещает запуск FreeCAD из-за отсутствия разрешения на приложение не из App store, разрешите их в системных установках:
Деинсталляция
Надеемся, Вы не захотите деинсталлировать FreeCAD, но всё равно хорошо бы это знать. В Windows и в Linux удаление FreeCAD очень просто. В Windows используйте стандартную опцию «remove software» в контрольной панели, В Linux удалите его тем же менеджером пакетов, который Вы использовали для установки FreeCAD. В Mac OS просто удалите его из папки Applications.
Установка базовых параметров
Когда FreeCAD установлен, Вам захочется открыть его и настроить. Установка предпочтений в FreeCAD находится в меню Правка → Параметры. Ниже перечислены некоторые базовые настройки, которые Вы можете захотеть изменить. Вы можете просмотреть страницы настроек в поисках чего-то ещё, что Вам захочется изменить.
Установка дополнительного содержимого
Поскольку проект FreeCAD и его сообщество быстро растёт, и поскольку его легко расширять, сторонние разработчики и проекты членов сообщества и сторонних энтузиастов начинают появляться в самых неожиданных местах интернета. Большинство из этих внешних проектов представляют собой рабочие среды или макросы и могут быть легко установлены прямо из FreeCAD через менеджер дополнений (Addons Manager), находящийся в меню Инструменты. Менеджер дополнений позволит вам установить много интересных компонентов, например:
If you are using the Ubuntu operating system, some of the addons above are also available as packages on the FreeCAD addons PPA
Установка в Linux
Содержание
Обзор
The installation of FreeCAD on the most well-known Linux systems has been now endorsed by the community, and FreeCAD should be directly available via the package manager available on your distribution. The FreeCAD team also provides some:
Ubuntu и Ubuntu подобные системы
Многие дистрибутивы Linux базируются на Ubuntu и используют их репозитории. Кроме официальных вариантов (Kubuntu, Lubuntu и Xubuntu), существуют неофициальные дистрибутивы, такие как Mnint, Voyager и другие. Приведенные ниже опции установки должны быть совместимыми с этими системами.
Официальная версия
FreeCAD доступен в репозиториях Ubuntu Universe и может быть установлен через Центр управления программным обеспечением или через терминал:
Стабильная PPA версия
С помощью графического интерфеса
Установка стабильного PPA с помощью графического интерфейса (GUI):
Now you can find and install the last stable FreeCAD version from the Ubuntu Software Center.
Через командную строку
Установите стабильный PPA через коммандную строку:
1. Добавьте PPA в свои источники программного обеспечения:
Проверка Установки
Development PPA (Daily)
As FreeCAD is in constant development, you may wish to install the daily package to keep with the latest improvements and bug fixes. The repository is also hosted on Launchpad and is called freecad-daily.
This version is compiled daily from the official master repository. Please beware that although it will contain new features and bug fixes, it may also have newer bugs, and be unstable.
Add the daily PPA to your software sources, update the package lists, and install the daily package:
Every day you can update to the latest daily:
Note: in some cases new code or dependencies added to FreeCAD will cause packaging errors; if this happens, a daily package may not be generated until the maintainers manually fix the problems. If you wish to continue testing the latest code, you should get the source code and compile FreeCAD directly; for instructions see compiling.
Запустите ежедневную (PPA) версию FreeCAD:
Debian и прочие базирующиеся на нём системы
Начиная с Debian Lenny, FreeCAD доступен прямо из программных репозиториев Debian и может быть установлен через synaptic или просто через:
OpenSUSE
FreeCAD is typically installed with YAST (abbr. Yet another Setup Tool) the Linux operating system setup and configuration tool, or in any terminal/console (root rights required) with:
Note: This procedure only covers the installation of officially released stable FreeCAD program versions, depending on the installed links to the program package repositories of your OS version. The openSUSE package may be outdated as the packaging may lag behind the latest stable source code. In this case, it is suggested to install the package manually from the below indicated (Expand) source repositories.
A vast release program for FreeCAD package builds are offered. Please visit for a survey:
Generally for selecting the correct openSUSE distribution needed it is necessary to click on the particular View button.
Stable
The stable package version: Stable repositories on openSUSE. The correct openSUSE distribution version must be selected in the lower part of the web page.
Note: openSUSE has several options to choose from when downloading FreeCAD. To view these options, visit Survey of stable repositories on openSUSE.
Development
It is recommended to grab the binary packages directly. Then select the correct distribution for your installed openSUSE OS.
Gentoo
FreeCAD может быть скомпилирован/установлен просто вызовом:
Fedora
FreeCAD has been included in the official Fedora packages since Fedora 20. It can be installed from the command line with:
On older Fedora releases, that was:
The gui packages managers can also be used. Search for «freecad». The official release package version tends to be well behind the FreeCAD releases. Package: freecad shows the versions included in the Fedora repositories over time and versions.
If you want to keep up with the absolute latest daily builds, FreeCAD is also available on copr. To install the build from there, in a terminal session, enter:
That leaves the copr repository active, so
or equivalent, will update to the latest FreeCAD build, along with updates from any of the other active repos. If you want something a bit more stable, you can disable @freecad/nightly again after the initial install. The copr repository only keeps builds from the past 2 weeks. This is not a solution if you want to pick a specific older version.
Инструкции также доступны в компиляция FreeCAD самостоятельно, включая сценарий специально для Fedora. С небольшим изменением, чтобы проверить конкретную фиксацию из git, любая версия начиная примерно с FreeCAD 0.15 может быть построена на любом дистрибутиве начиная с Fedora 21.
Installing FreeCAD on Arch Linux and derivatives (ex. Manjaro):
Другие
If you find out that your system features FreeCAD but is not documented in this page, please tell us on the forum!
Many alternative, non-official FreeCAD packages are available on the net, for example for systems like slackware or fedora. A search on the net can quickly give you some results.
changing Name_of_your_FreeCAD_package.deb by the name of the file you downloaded.
After you installed FreeCAD, a startup icon will be added in the «Graphic» section of your Start Menu.
Установка в других Linux/Unix системах
Many common Linux distros now include a precompiled FreeCAD as part of the standard packages. This is often out of date, but is a place to start. Check the standard package managers for your system. One of the following (partial) list of commands could install the official version of FreeCAD for your distro from the terminal. These probably need administrator privileges.
Если и этого недостаточно, и вы не можете найти другой источник предварительно скомпилированного пакета для вашей ситуации, вам потребуется скомпилировать FreeCAD самостоятельно.
Установка Windows Версии в Linux
Следующий Шаг
После того, как вы установили FreeCAD, пора приступить к работе!
Installing on Linux
Содержание
Overview
The installation of FreeCAD on the most well-known Linux systems has been now endorsed by the community, and FreeCAD should be directly available via the package manager available on your distribution. The FreeCAD team also provides some:
Ubuntu and Ubuntu-based systems
Many Linux distributions are based on Ubuntu and share its repositories. Besides official variants (Kubuntu, Lubuntu and Xubuntu), there are non official derivatives like Linux Mint, Voyager and others. The installation options below should be compatible with these systems.
Official version
FreeCAD is available from the Ubuntu Universe repository, and can be installed via the Software Center or from the terminal:
Stable PPA version
Install the stable PPA via the Graphical User Interface (GUI):
Now you can find and install the last stable FreeCAD version from the Ubuntu Software Center.
Install the stable PPA via the Command Line Interface (CLI):
1. Add the PPA to your software sources:
Note: due to packaging problems, in certain versions of Ubuntu the freecad-doc package has collided with the installation of FreeCAD or one of its dependencies; if this is the case, remove the freecad-doc package, and only install the freecad package. If the freecad-doc package doesn’t exist, then ignore it.
Checking Installation
Development PPA (Daily)
As FreeCAD is in constant development, you may wish to install the daily package to keep with the latest improvements and bug fixes. The repository is also hosted on Launchpad and is called freecad-daily.
This version is compiled daily from the official master repository. Please beware that although it will contain new features and bug fixes, it may also have newer bugs, and be unstable.
Add the daily PPA to your software sources, update the package lists, and install the daily package:
Every day you can update to the latest daily:
Note: in some cases new code or dependencies added to FreeCAD will cause packaging errors; if this happens, a daily package may not be generated until the maintainers manually fix the problems. If you wish to continue testing the latest code, you should get the source code and compile FreeCAD directly; for instructions see compiling.
Run the daily (PPA) version of FreeCAD:
Debian and other Debian-based systems
Since Debian Lenny, FreeCAD is available directly from the Debian software repositories and can be installed via synaptic or simply with:
OpenSUSE
FreeCAD is typically installed with YAST (abbr. Yet another Setup Tool) the Linux operating system setup and configuration tool, or in any terminal/console (root rights required) with:
Note: This procedure only covers the installation of officially released stable FreeCAD program versions, depending on the installed links to the program package repositories of your OS version. The openSUSE package may be outdated as the packaging may lag behind the latest stable source code. In this case, it is suggested to install the package manually from the below indicated (Expand) source repositories.
A vast release program for FreeCAD package builds are offered. Please visit for a survey:
Generally for selecting the correct openSUSE distribution needed it is necessary to click on the particular View button.
Stable
The stable package version: Stable repositories on openSUSE. The correct openSUSE distribution version must be selected in the lower part of the web page.
Note: openSUSE has several options to choose from when downloading FreeCAD. To view these options, visit Survey of stable repositories on openSUSE.
Development
It is recommended to grab the binary packages directly. Then select the correct distribution for your installed openSUSE OS.
Gentoo
FreeCAD can be built/installed simply by issuing:
Fedora
FreeCAD has been included in the official Fedora packages since Fedora 20. It can be installed from the command line with:
On older Fedora releases, that was:
The gui packages managers can also be used. Search for «freecad». The official release package version tends to be well behind the FreeCAD releases. Package: freecad shows the versions included in the Fedora repositories over time and versions.
If you want to keep up with the absolute latest daily builds, FreeCAD is also available on copr. To install the build from there, in a terminal session, enter:
That leaves the copr repository active, so
or equivalent, will update to the latest FreeCAD build, along with updates from any of the other active repos. If you want something a bit more stable, you can disable @freecad/nightly again after the initial install. The copr repository only keeps builds from the past 2 weeks. This is not a solution if you want to pick a specific older version.
Instructions are also available on compile FreeCAD yourself, including a script specifically for Fedora. With a minor change, to checkout the specific commit from git, any version since about FreeCAD 0.15 can be built on any distribution since Fedora 21.
Installing FreeCAD on Arch Linux and derivatives (ex. Manjaro):
Other
If you find out that your system features FreeCAD but is not documented in this page, please tell us on the forum!
Many alternative, non-official FreeCAD packages are available on the net, for example for systems like slackware or fedora. A search on the net can quickly give you some results.
changing Name_of_your_FreeCAD_package.deb by the name of the file you downloaded.
After you installed FreeCAD, a startup icon will be added in the «Graphic» section of your Start Menu.
Installing on other Linux/Unix systems
Many common Linux distros now include a precompiled FreeCAD as part of the standard packages. This is often out of date, but is a place to start. Check the standard package managers for your system. One of the following (partial) list of commands could install the official version of FreeCAD for your distro from the terminal. These probably need administrator privileges.
If that still is not good enough, and you cannot locate another source of a precompiled package for your situation, you will need to compile FreeCAD yourself.
Installing Windows Version on Linux
Next Step
Once you’ve got FreeCAD installed, it’s time to get started!
FreeCAD: Installing FreeCAD on Linux
Install
Using AppImage
Download the AppImage file «FreeCAD_0.19-24276-Linux-Conda_glibc2.12-x86_64.AppImage» from following website.

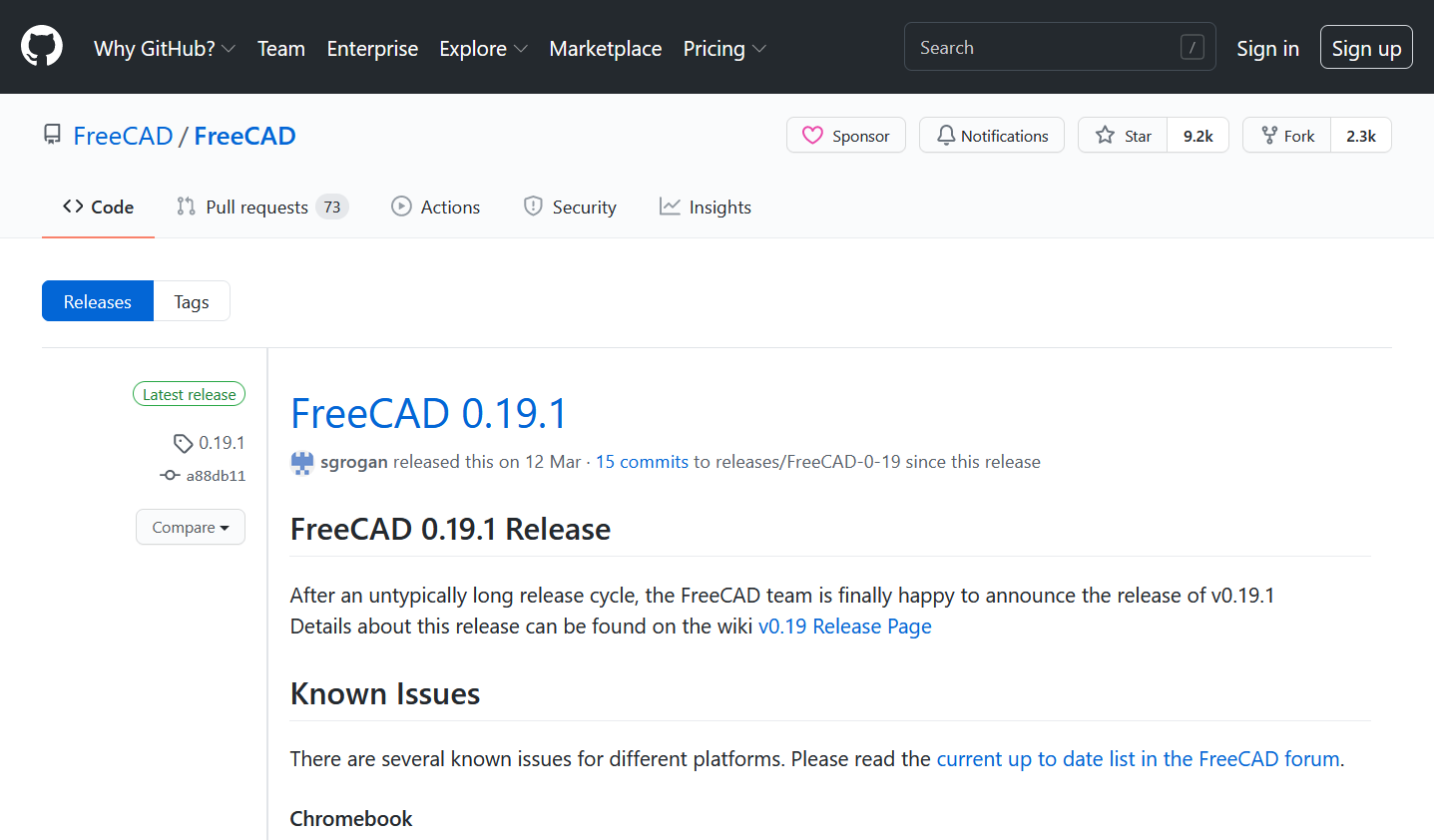

FreeCAD Release page on GitHub
After downloading the file, move the AppImage file to a directory which you want to install FreeCAD at.
Then right-click the AppImage and select [Properties] to open Properties dialog. And check «Allow executing files as program» in «Permissions» tab.
Permissions settings
After Permissions settings, double click the AppImage file to start FreeCAD.
Using PPA
On Ubuntu, FreeCAD can be install witn PPA. Add PPA of stable version FreeCAD and install FreeCAD with following commands on terminal.
After installing, you can start FreeCAD with command «freecad» on terminal.
Install developing version FreeCAD
In addition to above normal version repository, PPA (Personal Package Archives) of daily build version repository are offered. These developing repogitories were not stable but has newest features you can use. You can install it with following commands.
After installing, you can start developing version FreeCAD with command «freecad-daily» on terminal.
